1. Abstract
Due to major competition in the automotive industries these days, everyone is looking for the best car to manufacture, sell, and buy. To achieve this task, companies and customers actively seek the full car specifications of their product and competitors for comparison. Many automotive companies only give general specifications like maximum speed, dimensions, and general suspension/steering outlines. As an engineer, we need to investigate the full specifications of a vehicle to a point where we can reverse engineer the car. This paper presents an analytical study of the suspension layout and steering kinematics of the legendary McLaren F1 road car.
2. Introduction and Vehicle Background
The McLaren F1, powered by the BMW S70/2 6.1-litre V12 engine, set a long-standing record of 240.1 mph in 1998, remaining the fastest naturally aspirated production car ever built. Its chassis is a carbon fibre reinforced composite monocoque, setting an early precedent for carbon fibre composites in production vehicles. Its suspension configuration uses double wishbones both front and rear, utilizing a unique Ground Plane Shear Centre subframe mount at the front and an Inclined Axis Shear mounting at the rear, combined with toe control links to manage dynamic deflection steer.
3. Vehicle Dynamic Load Calculations
Calculations were performed to estimate static and dynamic wheel loads under various operating conditions. With a total weight of 1,140 kg (53% rear weight bias) and static roll centers, static axle loads are:
- Static Front Load: 2,318 N per wheel
- Static Rear Load: 3,274 N per wheel
Under a tractive acceleration force of 13,246 N (0.85g), dynamic load transfer reduces front tire loads and increases rear traction:
- Accelerating Front Wheel Load: 1,808.75 N
- Accelerating Rear Wheel Load: 3,782.95 N
Under a maximum braking deceleration of 9.81 m/s² (1.0g), the load transfer shifts to the front wheels:
- Braking Front Wheel Load: 3,031.30 N
- Braking Rear Wheel Load: 2,560.40 N
4. Steering Geometry and Kinematics
The McLaren F1 features an unassisted rack-and-pinion steering system. Using turning parameters and track width (Front: 1,568 mm, Rear: 1,472 mm, Wheelbase: 2,718 mm), the steering angles for a 13-meter turning circle diameter (Ds) were calculated:
- Calculated Outer Wheel Angle (θ): 24.78°
- Calculated Inner Wheel Angle (φ): 29.35°
- Ackermann Toe Difference (φ - θ): 4.57°
This positive Ackermann toe difference ensures slip angles are minimized during low-speed cornering, reducing tire scrub and steering effort.
5. Tyre Scrub Torque
Using tire contact patch dimensions (Af = 0.01021 m²) and friction coefficient (μ = 0.85), the turning scrub torque (Ms) was evaluated. The scrub moment at the front axles under maximum braking increases to 4,638.58 N-mm, requiring careful suspension bushing stiffness designs to prevent toe deviation.
6. Conclusion
The analytical calculations validate the packaging decisions made by Gordon Murray's design team. The suspension geometry manages dynamic load transfers effectively, maintaining high stability under high braking deceleration (up to 1.0g) and optimizing traction for the rear-driven powertrain.
| Specification | F1 Road Car | F1 GTR Race Car (1997) | F1 LM Road Car |
|---|---|---|---|
| Production Year | 1993 - 1998 | 1997 | 1996 |
| Examples Built | 64 | 10 | 5 |
| Engine | BMW S70/2 6.1L V12 (Naturally Aspirated) | BMW S70/2 6.0L V12 (Air-restricted) | BMW S70/2 6.1L V12 (Unrestricted) |
| Cubic Capacity | 6,064 cc | 5,990 cc | 6,064 cc |
| Power Output | 627 bhp @ 7400 rpm | 600 bhp @ 7500 rpm | 680 bhp @ 7800 rpm |
| Transmission | Transverse 6-speed, LSD | Magnesium case transverse 6-speed | Transverse 6-speed Racing Unit, LSD |
| Front Suspension | Double wishbones, Ground Plane Shear Centre subframe, light alloy damper, coaxial coil spring, anti-roll bar | ||
| Rear Suspension | Double wishbones, Inclined Axis Shear mounting, light alloy damper, coaxial coil spring, toe control links | ||
| Brakes F/R | Outboard 13/12 in ventilated discs | Outboard 15/14 in ventilated carbon discs | Outboard 13/12 in ventilated discs |
| Weight | 1140 kg (2502 lb) | 915 kg (2017 lb) | 1062 kg (2341 lb) |
| Wheelbase | 2718 mm | 2723 mm | 2718 mm |
| Track F/R | 1568 / 1472 mm | 1617 / 1582 mm | 1570 / 1464 mm |

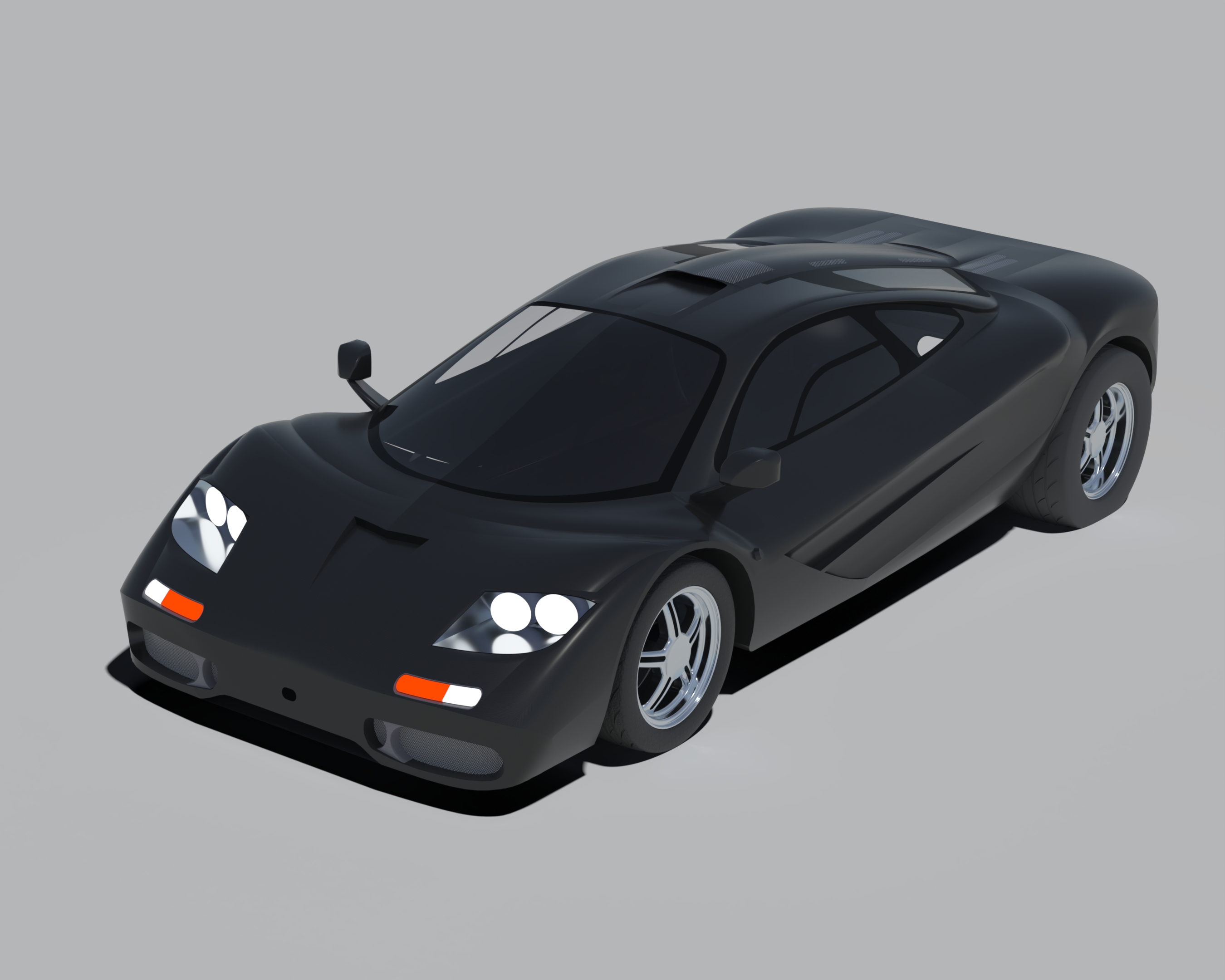

Investigation of Suspension and Steering Performance of the McLaren F1
Detailed analytical engineering investigation and 3D surface recreation of the McLaren F1. Analyzed tire scrub, Ackermann geometry, suspension subframe kinematics, and steady-state dynamic load transfer under acceleration and braking (up to 1.0g).
.png)
.png)
.png)
.png)

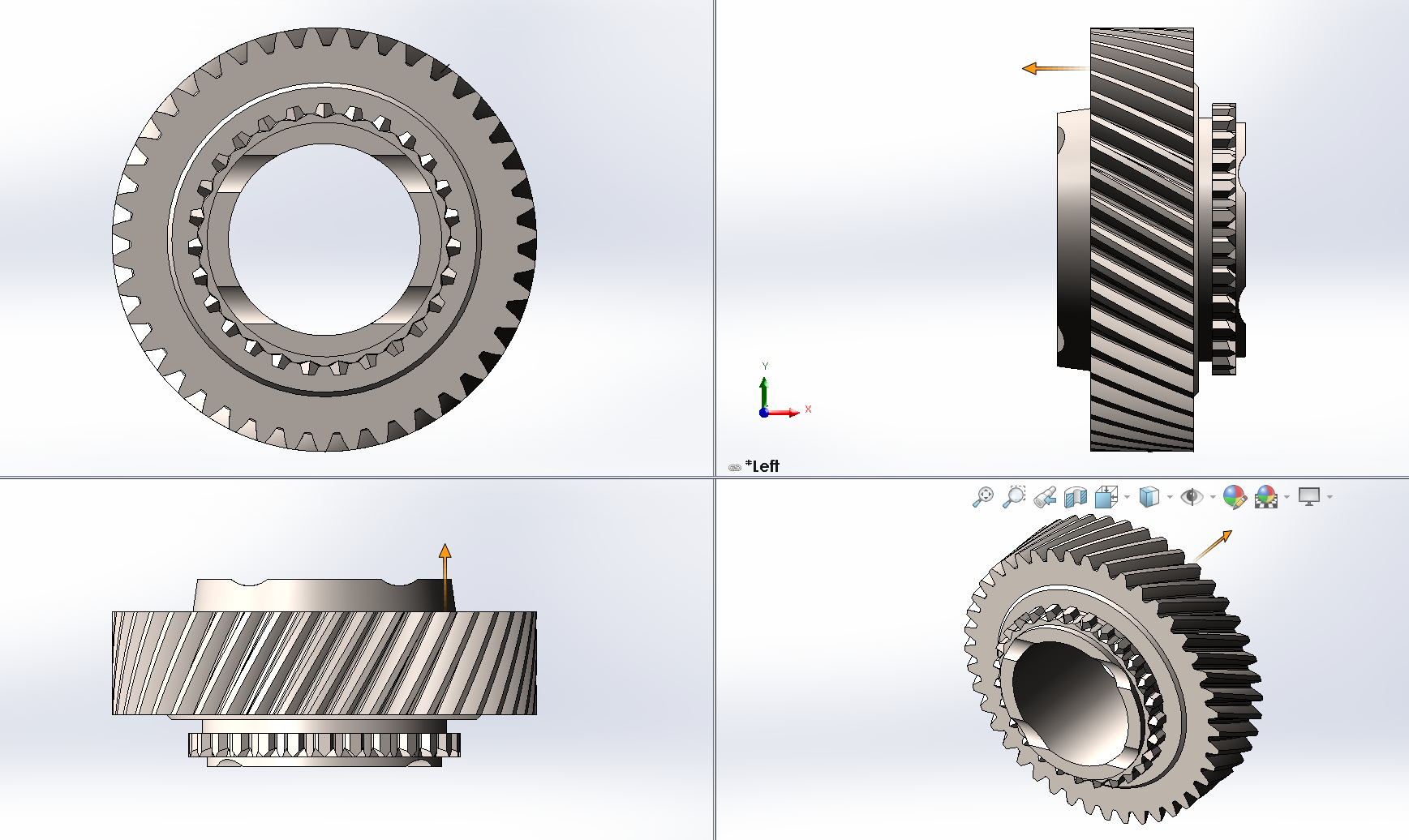

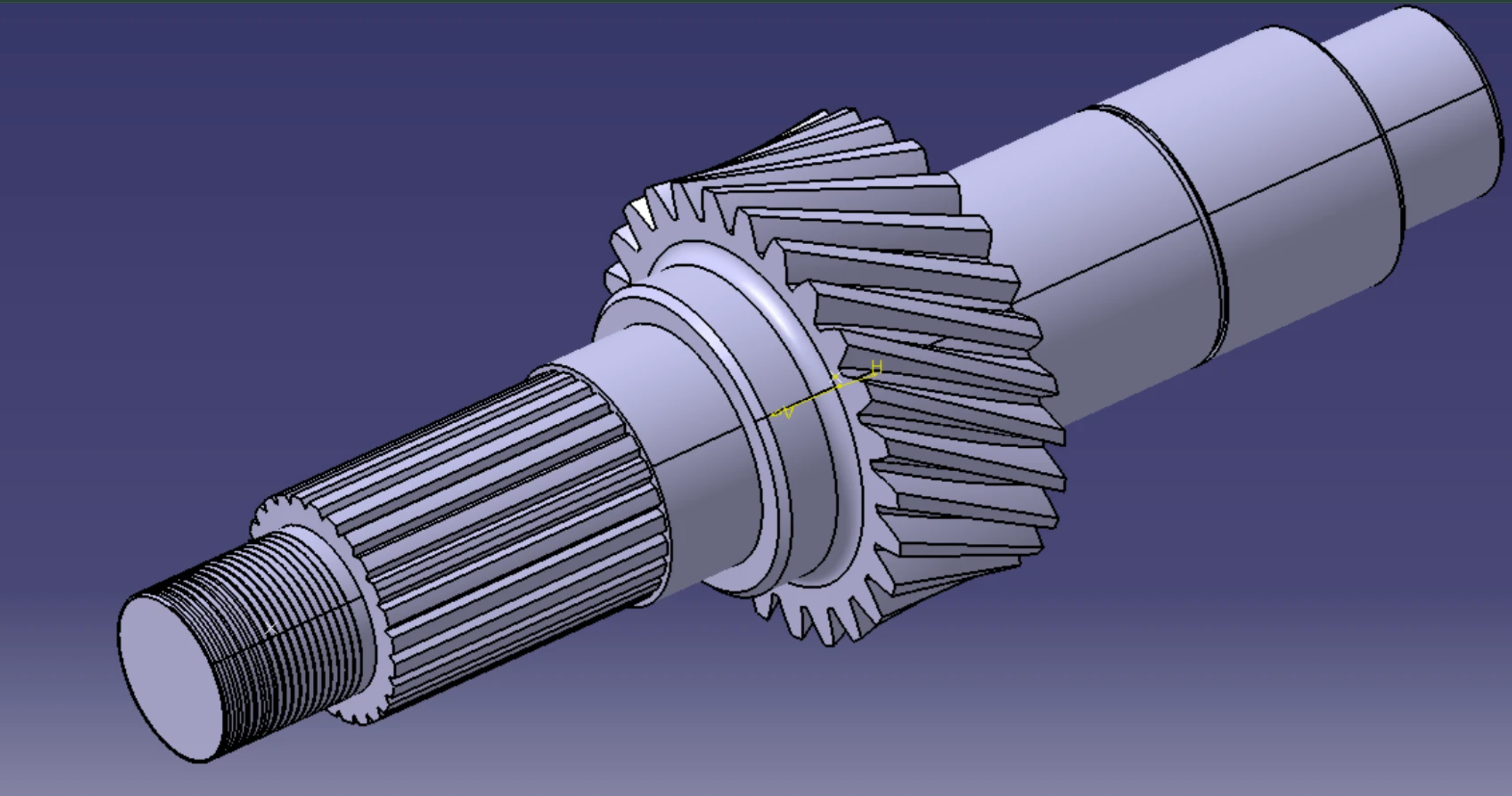

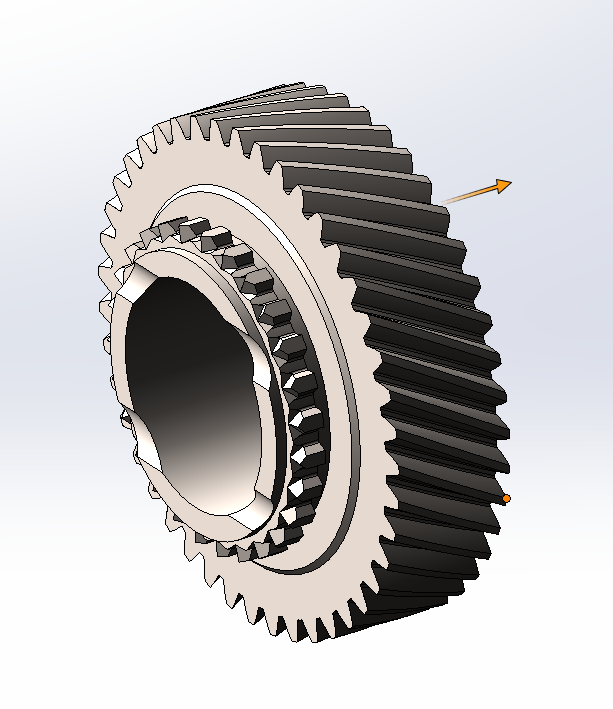

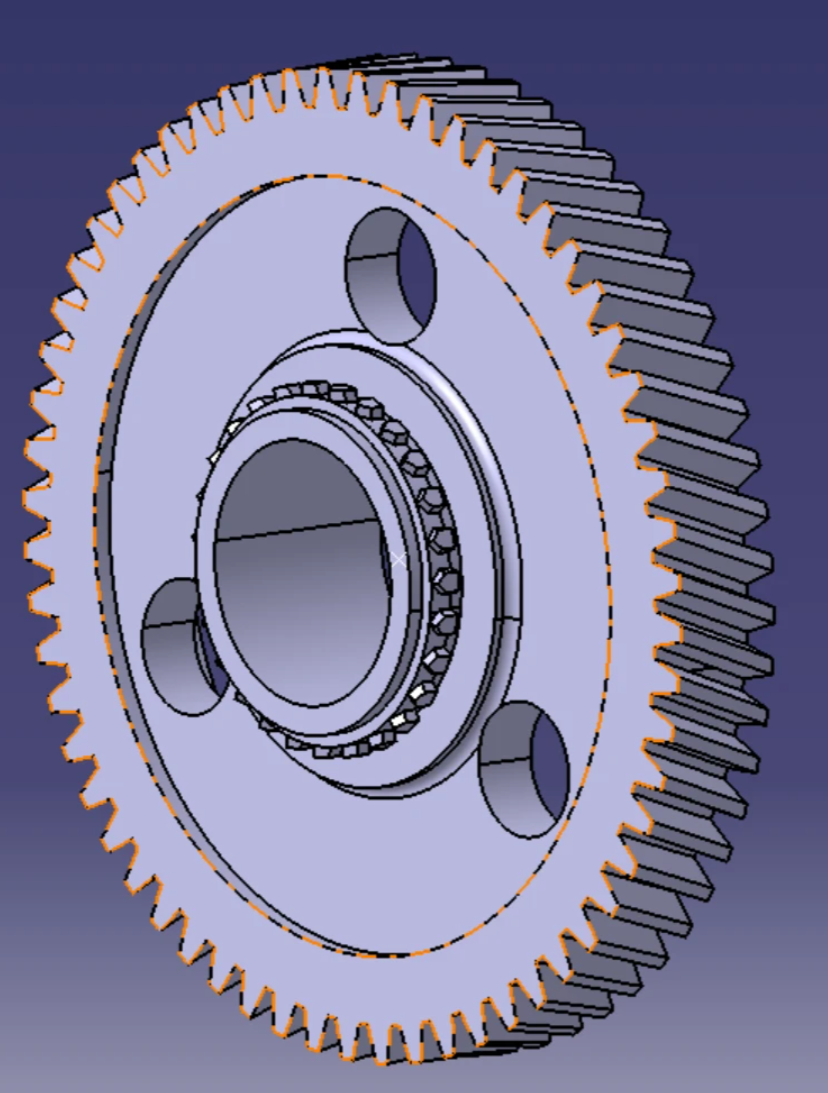

Suzuki Samurai Transfer Case Gear Set Reverse Engineering
High-fidelity reverse engineering of the Suzuki Samurai 4WD transfer case gear set. Recreated complete gear geometries, shaft splines, and casing interfaces based on physical teardown measurements, optimizing tooth contact and load distribution.

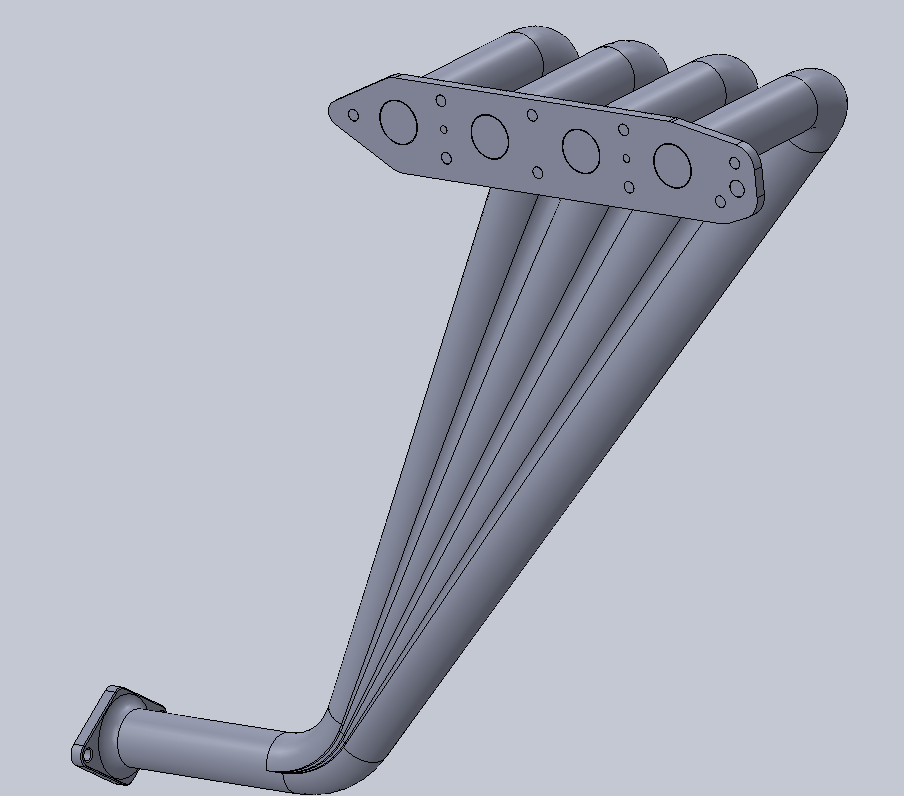

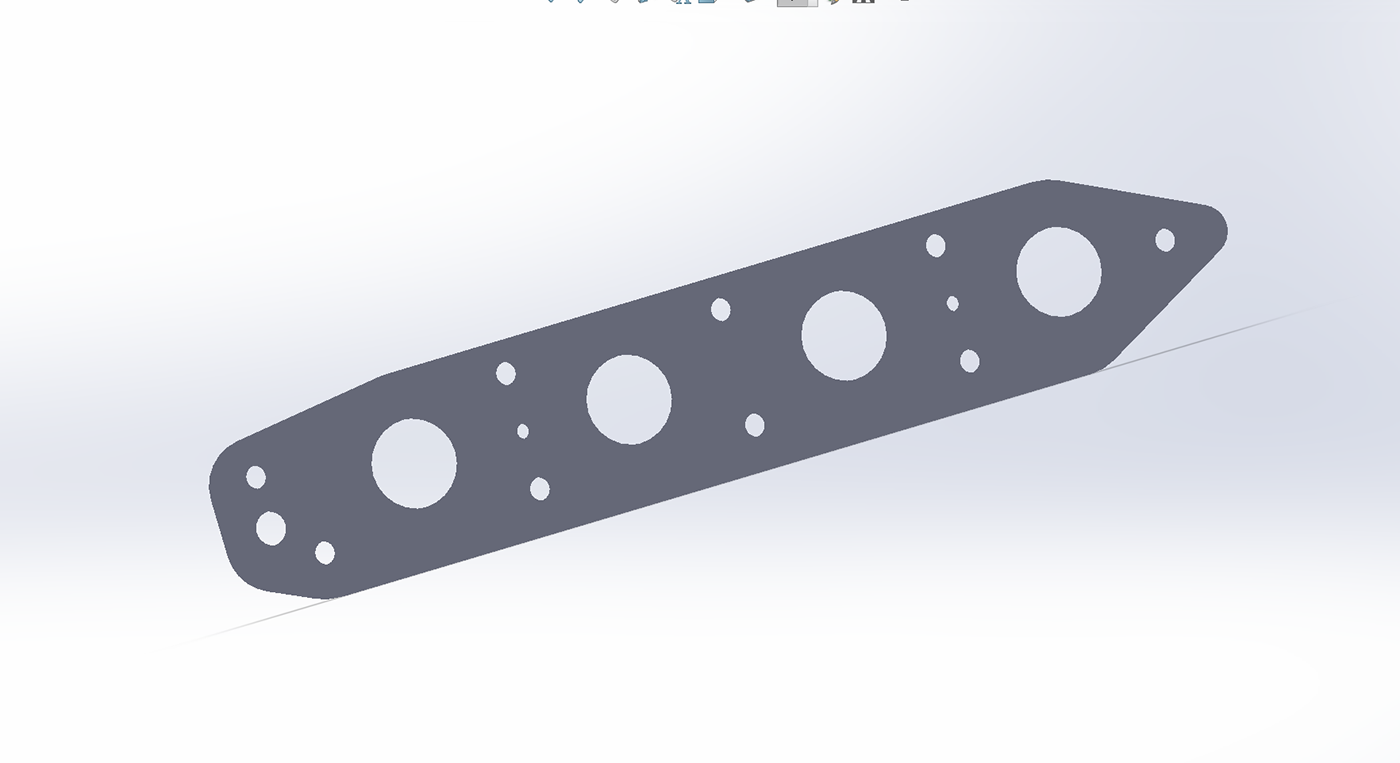

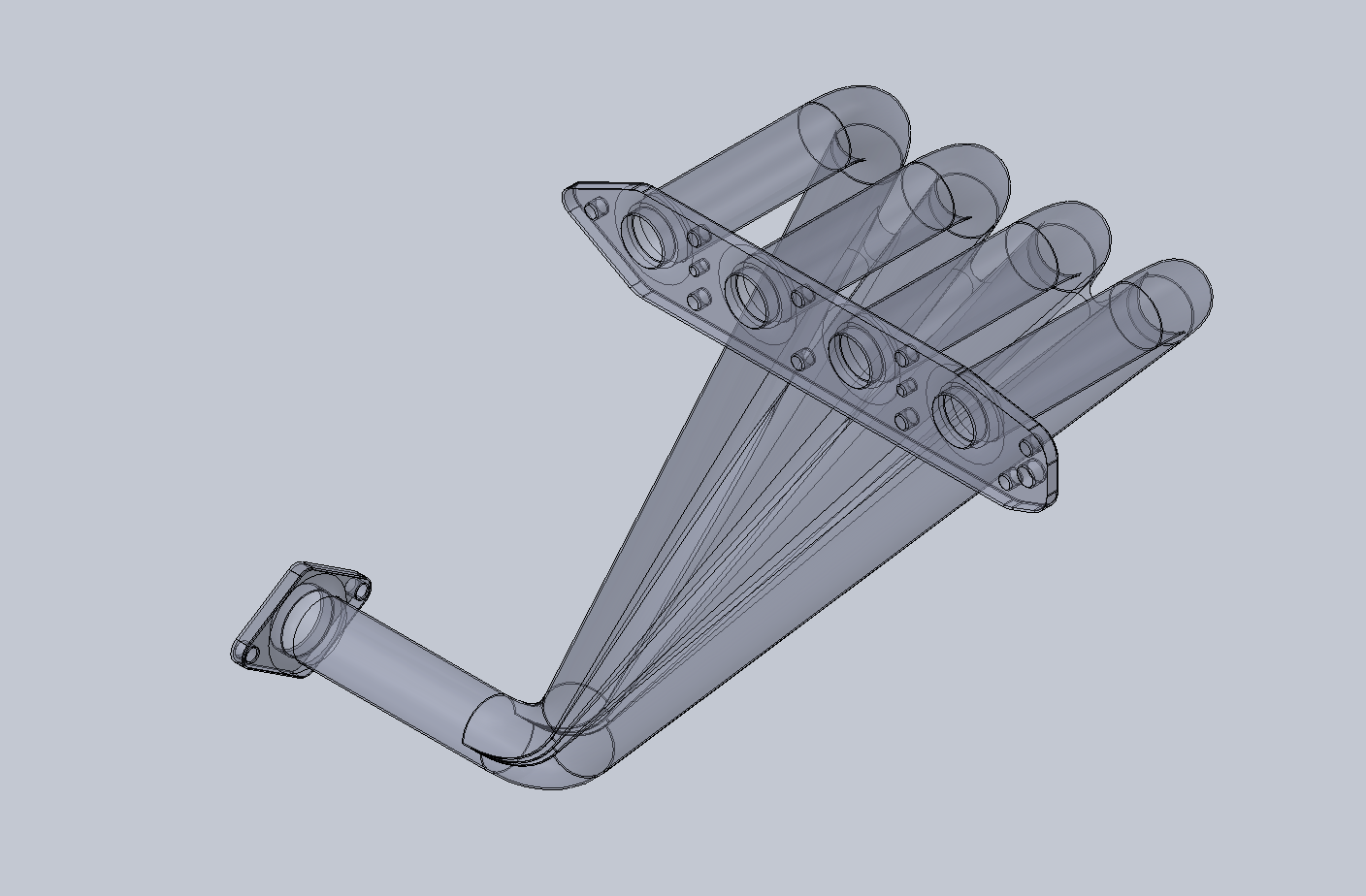

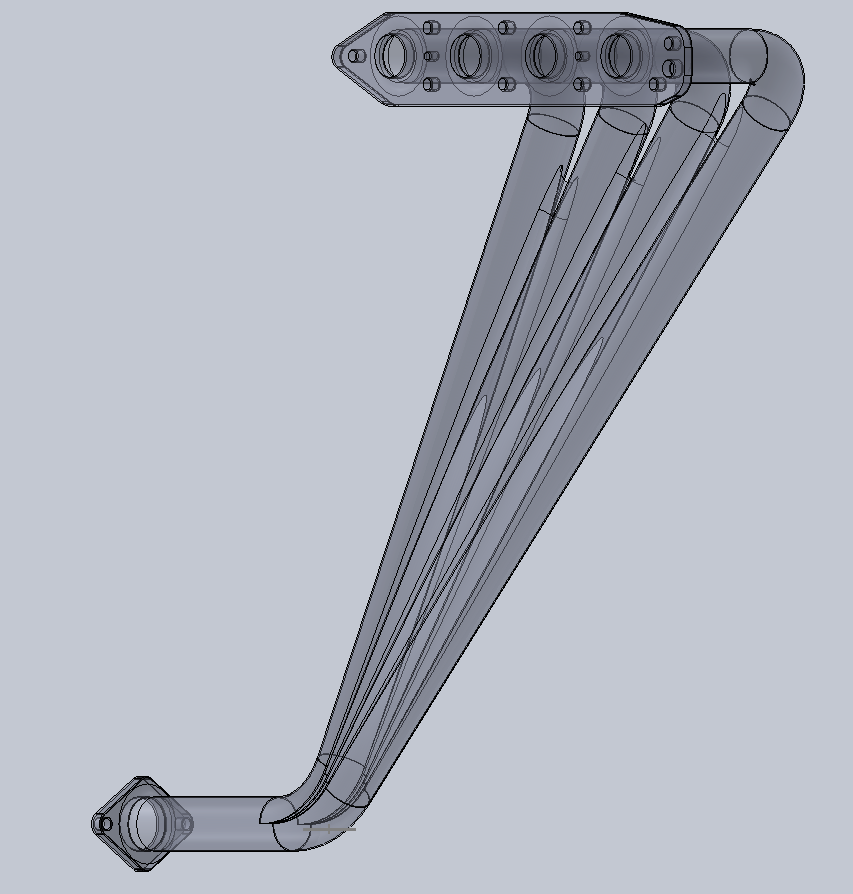

Suzuki Baleno Exhaust Manifold Design
Engineered a high-performance 4-1 exhaust manifold header for the Suzuki Baleno. Designed equal-length primary runners to optimize exhaust gas scavenging and volumetric efficiency, validating clearance constraints within the engine bay packaging envelope.

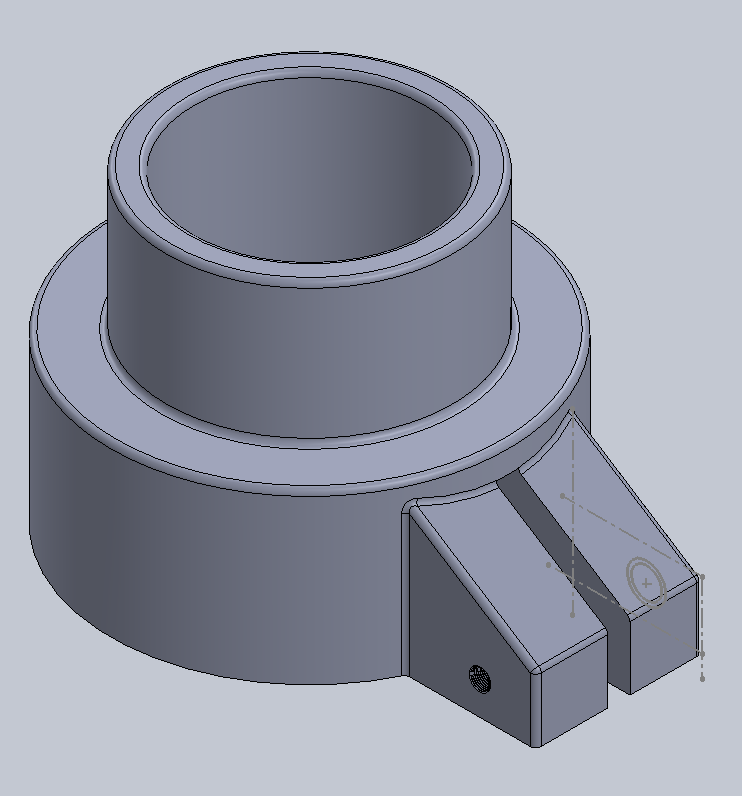

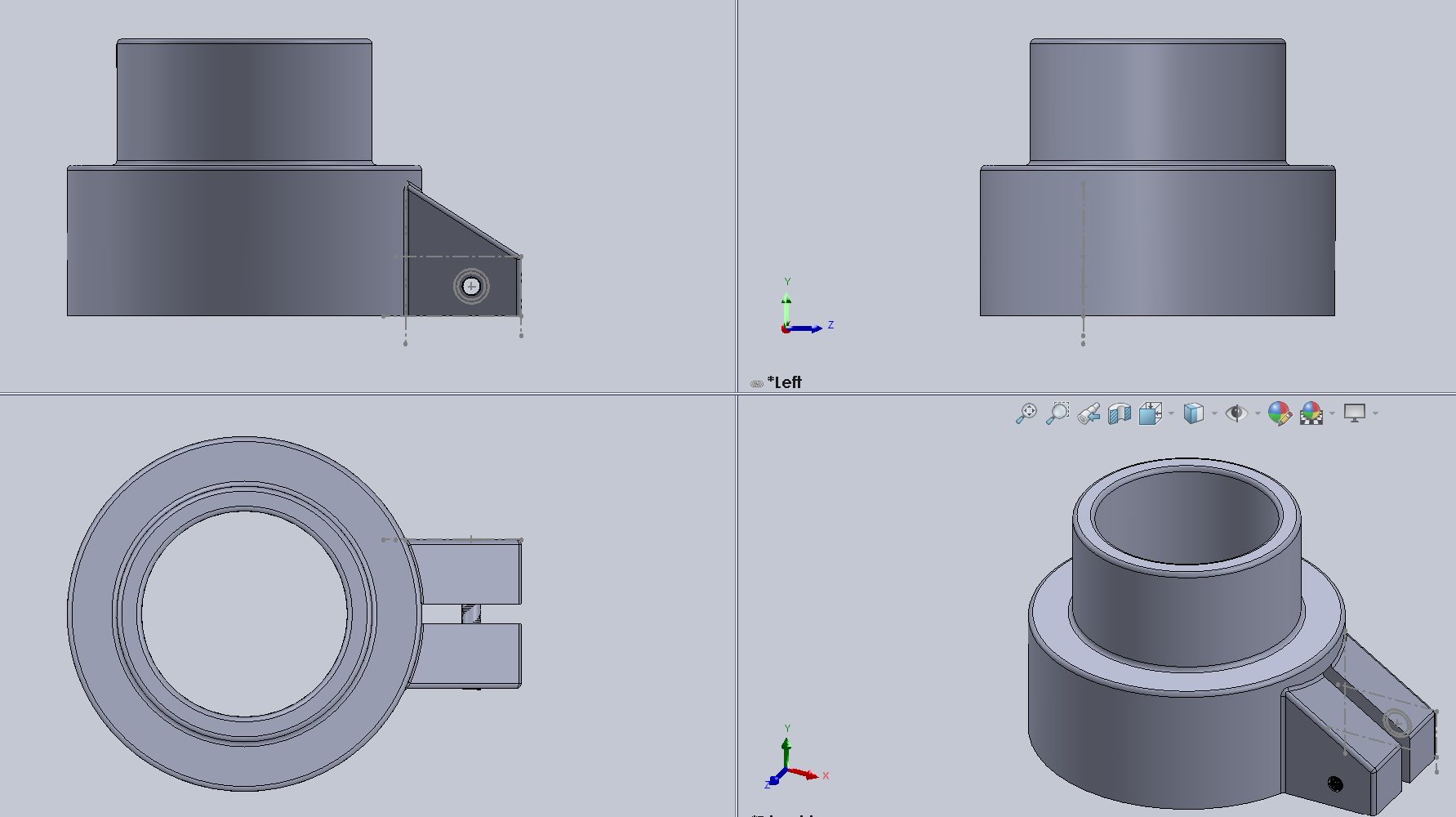

KTM 390 Fork Extenders
